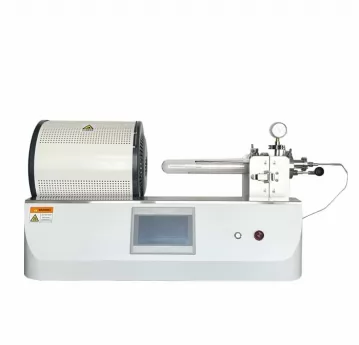

RTP1160 Laboratory Rapid Annealing Tube Furnace upto 1200 degree

The CHY-RTP1160 vacuum RTP tube furnace is Fe-Cr-Al Alloy doped by Mo with heating rate 20c/min.The rated heating power is 3.5KW. It has water cooled vacuum sealing flange and inlet gas port which allows vacuum heating or gas protective heating.It also have built in thermocouple for accuracy sample temperature measurement.

Inquire Now Next Product

Products Description

Model	CHY-RTP1160
Display Model	Highlight LED display
Maximum Temperature	1150℃
Working Temperature	≤1150℃
Heating rate	20℃/min
Heating zones	Single heating zone
Quartz Tube Diameter	O.D60*450mm
Heating zone length	200mm
Max heating sample size	35mm
Control mode	Intelligent PID auto control
Temperature Accuracy	±1℃
Temperature curve	30 segments programmable
Temperature Sensor	K-type thermocouple
Heating Element	Fe-Cr-Al Alloy doped by Mo
Quartz Tube Material	High Purity Quartz Tube
Power Supply	220V 50Hz
Rated power	3.5kw
Overall dimensions	800540750mm
