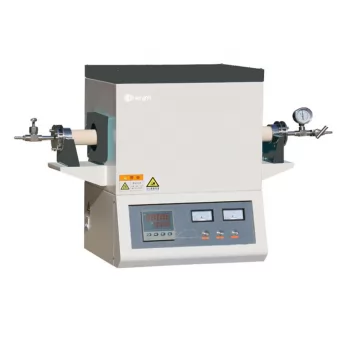

CHY-T1700A Compact 1700 degree Single Zone Vacuum Tube Furnace

T1700A serial vacuum tube furnace is compact singel heating zone furnace upto 1650 degree. It has Φ50/Φ60/Φ80mm Corundum tube size for option.This furnace's temperature controller is PID precison Yudian controller, the temperature accuracy is ±1℃.Heating zone length is 300mm. It is widely used for laboratory sample heating,annealing etc.

Inquire Now Next Product

Products Description

Model	CHY-T1750A	CHY-T1760A	CHY-T1780A
Display Model	Highlight LED display
Maximum Temperature	1650℃
Working Temperature	≤1650℃
Heating rate	Suggest:<10℃/min
Heating zones	Single heating zone
Quartz Tube Diameter(mm)	O.D50I.D401000L	O.D60I.D501000L	O.D80I.D701000L
Heating Zone Length	300mm	300mm	300mm
Constant Heating Zone	150mm	150mm	150mm
Control mode	Intelligent PID auto control
Temperature Accuracy	±1℃
Temperature curve	30 segments programmable
Heating alarm	Built-in protection for the over-heating and broken thermocouple.
Temperature Sensor	B-type thermocouple
Heating Element	MoSi2 heating rod
Quartz Tube Material	High Purity corundum tube
Power Supply	220V 50Hz
Rated power	4.5kw
Overall dimensions	700510720mm
