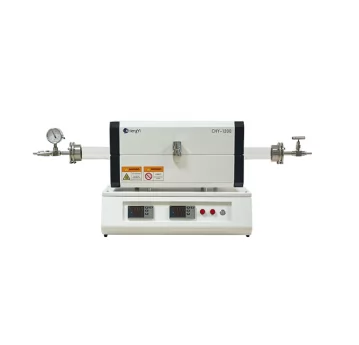

T1250S-B Laboratory 1200 degree Compact Double Zone Tube Furnace

T1250S-B 1200 degree vacuum tube furnace is a single heating zone tube furnace. This tube furnace max heating temeprature is upto 1150 degree controlled with PID precison temperature control, the temperature accuracy is ±1℃. It is widely used for laboratory sample heating,annealing etc.

Inquire Now

Products Description

Model	CHY-T1250S-B
Furnace Door	Split Type Furnace
Display Model	Highlight LED display
Maximum Temperature	1150℃
Working Temperature	≤1100℃
Heating rate	≤20℃/min Suggest:10℃/min
Heating zones	Two heating zone
Quartz Tube Diameter	O.D50*1000mm
Inner Diameter	I.D 44*1000mm
Heating Zone Length	200+200mm
Constant Heating Zone	80+80mm
Control mode	Intelligent PID auto control
Temperature Accuracy	±1℃
Temperature curve	30 segments programmable
Heating alarm	Built-in protection for the over-heating and broken thermocouple.
Temperature Sensor	K-type thermocouple
Heating Element	Fe-Cr-Al Alloy doped by Mo
Quartz Tube Material	High Purity Quartz Tube
Power Supply	220V 50HZ
Rated power	1.2kw
Overall dimensions	460×320×430mm
