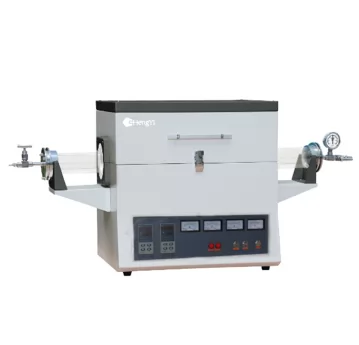

CHY-T1200B 1200 degree Double Heating Zone Horizontal Vacuum Tube Furnace

T1200B serial 1200 degree Electric vacuum tube furnace is double heating zone tube furnace. It have Φ50/Φ60/Φ80/Φ100mm quartz tube size for option.This tube furnace max heating temeprature is upto 1150 degree controlled with Seperate PID precison temperature control, the temperature accuracy is ±1℃.Heating zone length is 220+220mm. It is widely used for laboratory sample heating,annealing etc.

Inquire Now Next Product

Products Description

Model	CHY-T1250B	CHY-T1260B	CHY-T1280B	CHY-T12100B
Furnace Door	Split Type Furnace
Display Model	Highlight LED display
Maximum Temperature	1150℃
Working Temperature	≤1100℃
Heating rate	≤20℃/min Suggest:10℃/min
Heating zones	Double heating zone
Quartz Tube Diameter(mm)	O.D50I.D44*1000L	O.D60I.D541000L	O.D80I.D741000L	O.D100I.D941000L
Heating Zone Length	220+220mm	220+220mm	220+220mm	220+220mm
Constant Heating Zone	130+130mm	130+130mm	130+130mm	130+130mm
Control mode	Intelligent PID auto control
Temperature Accuracy	±1℃
Temperature curve	30 segments programmable
Heating alarm	Built-in protection for the over-heating and broken thermocouple.
Temperature Sensor	K-type thermocouple
Heating Element	Fe-Cr-Al Alloy doped by Mo
Quartz Tube Material	High Purity Quartz Tube
Power Supply	220V 50Hz
Rated power	5.0kw
Overall dimensions	630×470×610mm
