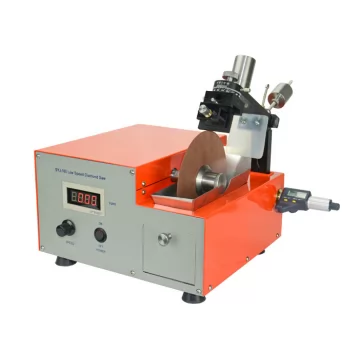

SYJ-160 Laboratory Compact Low Speed Diamond Saw

SYJ-160 can be used for cutting various materials, with low speed stability, low loss, small deformation, gravity feed, and saw blade size φ 100-150mm, cutting depth ≤ 50mm

Inquire Now Next Product

Products Description

Power supply	AC 220V 50Hz,DC24V 6.67A;70W
Main Axis speed	25~600rpm
Maximum stroke of slide feed	50mm
Fine tune distance	25mm (0.01mm acccuracy)
Cutting saw size	Φ150×Φ12.7mm
Max cutting depth	50mm
2D fixture	Hrizontal: 360° ; Tilt angle±15°
Sample Holder	25×50mm;clamp opening：25mm
Dimension	410350350mm
