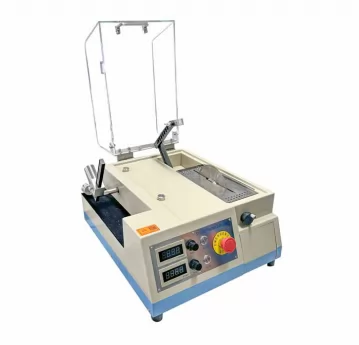

SYJ-1000 Laboratory Precision Cutting Saw

The SYJ-1000 precision cutting machine is equipped with various materials of saw blades, such as sintered diamond saw blades, electroplated diamond saw blades, corundum saw blades, silicon carbide saw blades, and cubic boron nitride saw blades, which can meet the cutting needs of different materials. It is also equipped with a limit device for unmanned cutting.

Inquire Now Next Product

Products Description

Power supply	AC 220V 50Hz
Main Axis speed	50~1500rpm
Cutting saw size	Φ150×Φ12.7×0.6mm
Max cutting depth	50mm
Feed positioning accuracy	0.01mm
Gravity cutting fixture	Adjustable two position fixture: Horizontal 360 ° ;Vertical: ± 15 °

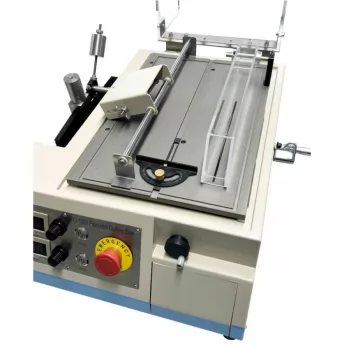

Hand push saw workbench	Hand push saw cutting function equipped with angle cutting ruler
Dimension	410mm×330mm×290mm
Gross Weight	40kg
