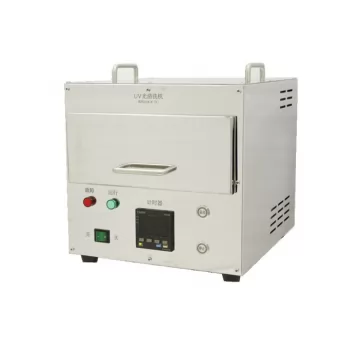

Laboratory Drawer type UV OZONE Cleaner

The drawer type UV light cleaning machine has industrial level cleaning efficiency and effectiveness, suitable for cleaning small substrates such as LCD panels, IT0, FT0, optical glass, 0LED, LCD, silicon wafers, ceramics, metal sheets, polymers, silicone, and other surface cleaning. It is used to clean the surface organic matter of products, that is, to modify the surface and obtain good hydrophilicity

Inquire Now Next Product

Products Description

Model No.	CHY-200TC	CHY-250TC	CHY-320TC
Machine Material	mirror stainless steel 304
Tube Rated Power	200W	250W	320W
Cleaning Sample size	150*150mm	200*200mm	250*250mm
Working spectrum	185+254nm
Lamp Lifetime	8000hours
Timing range	0~99min/hour
Irradiation height	0~100mm
Heating function	0~300℃(option function)
Safety protection	When the drawer is pulled out, the light tube automatically off
Exhaust function	Equipped with ozone exhaust system, 125mm diameter air outlet, equipped with air duct and fasteners
Power supply	AC220V/50Hz	AC220V/50Hz	AC220V/50Hz
