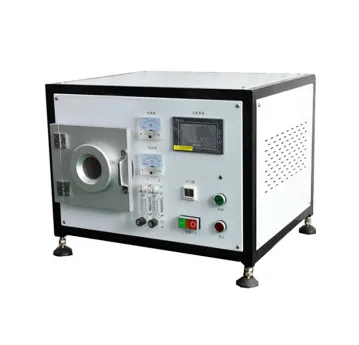

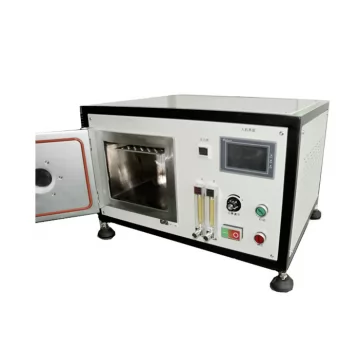

CHY-10S 40KHz Plasma Cleaner with 10L Stainless Steel Chamber

CHY-10S is a vacuum plasma cleaner with Stainless steel chamber.The chamber size is 220 ×260×200mm with 40KHz frequency power.It is equipped with two float flow meter can allows gas insert.Accuracy MFC is availiable.

Inquire Now Next Product

Products Description

Model No.	CHY-10S
Display	LCD touch controller
Working voltage	AC 220V, 50Hz
RF Frequency	40KHz
RF power	0~300 w
RF offset	< 0.2KHz
Characteristic impedance	50Ω, automatic matching
Vacuum degree	1-30Pa, equipped with a mechanical pump
Gas speed	Two way Float Flow Gas Control:10-160ml/min, adjustable
Control	MCU Auto Control or Mannually adjustable
Inner chamber size	Chamber Dimension :220 ×260×200mm Capacity: 10L
Pressure Gauge	A simple digital pressure gauge is equipped for reading
Clearing time	1-9999S adjustable
Cooling way	Forced cooling
Outer dimension	650 ×550×440mm
