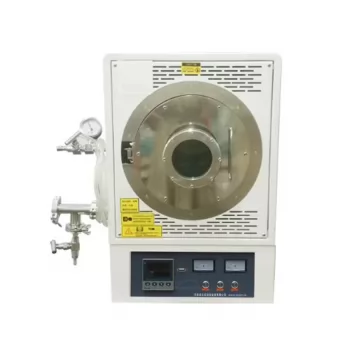

1200 Degree Laboratory Horizontal Vacuum Crucible Muffle Furnace with Quartz Chamber

The crucible muffle furnace is designed with a quartz chamber which allows vacuum sealing and also equipped with gas inlet/outlet port,can insert protective gas. The quartz chamber effectively isolates the contact between the reaction gas and the furnace material and heating element, reducing the risk of corrosion to the furnace material and heating element. Can effectively replace the atmosphere box furnace.

Inquire Now Next Product

Products Description

Model	H12210
Display Model	Highlight LED display
Maximum Temperature	1150℃
Working Temperature	≤1150℃
Heating rate	≤20℃/min Suggest:10℃/min
Quartz Chamber dimensions	Φ210×360mm
Control mode	Intelligent PID auto control;30 segments programmable
Temperature Accuracy	±1℃
over heat alarm	Have
overcurrent protection	Have
Thermocouple Failure Protection	Have
Sealing flange	S. S sealing flange with OD100mm observation window and Gas insert vacuum connect port
Gas inlet/outlet	6.35mm gas connection port
Cooling method	Water cooling
Temperature Sensor	K-type thermocouple
Heating Element	Fe-Cr-Al Alloy doped by Mo
Power Supply	AC220/V50Hz
