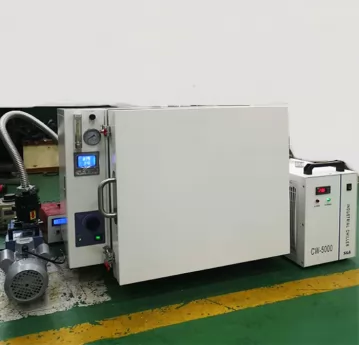

HZF-6020 Serial High Temperature Vacuum Drying Oven
HZF-6020 Serial High Temperature Vacuum Drying Oven

HZF-6020 Serial High Temperature Vacuum Drying Oven

HZF-6020 is high temperature vacuum drying oven max can upto 600 degree.It is suitable for high-temperature baking, temperature drying, low vacuum sealing test, anaerobic treatment, high-temperature stress relief, high-temperature curing and other applications of its products and materials in aviation, automotive, industrial and mining enterprises, household appliances, laboratories, scientific research institutions, and colleges and universities.

Products Description

Model No.HZF-6020
Power suupplyAC220V/50Hz
Rated power3KW
 Temperature range

6020A: Rt~400℃

6020B:Rt~500℃

6020C:Rt~600℃

Temperature resolution0. 1℃
Temperature fluctuation±0.5-1℃
Vacuum degree≤133Pa(-0. 1MPa)
Chamber size300*300*275mm
Sample tray2pcs
Temperature controlPID programmable control
Gas inletN2 gas inlet port
Temperature sensorK type thermocouple
Cooling methodWater cooling
Machine dimension780*550*450mm
