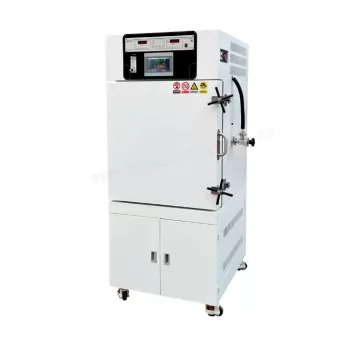

HX-125DZR Laboratory Aerospace Thermal Vacuum Test Chamber

HX-125DZR Thermal Vacuum Test Chamber is suitable for curing or testing various performance indicators of products and materials in high-temperature environments in fields such as aviation, precision metal processing, automobiles, industrial and mining enterprises, household appliances, laboratories, research institutions, and colleges and universities.

Inquire Now Next Product

Products Description

Model No.	HX-125DZR
Input Power	380V/50Hz, 5.25Kw
Temperature Range	RT+10~400℃
Vacuum chamber size	500500500mm
Limited vacuum degree	1*10^-4 Pa
Temperature resolution	0.1℃
Temperature fluctuation	±0.5℃(Constant condition)
Heating rate	400℃/90min
Nitrogen flow speed	0~100L/min
Heating method	Built in heating chamber
Temperature sensor	K type thermal sensor
Cooling method	Water cooling
Control	PLC touch panel Programmable control
Safety	Over temperature, Leakage protection, broken resistance wire alarm, phase loss protection, grounding protection, etc
Dimension	97010101860mm
