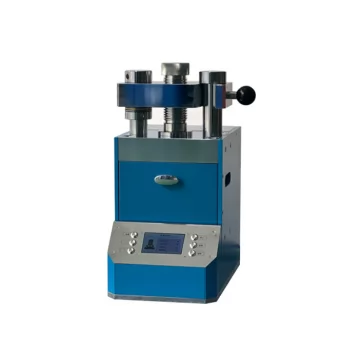

30T-60T Automatic Fluorescent Hydraulic Tablet Press

All-in-one structure 30T-60T Automatic Fluorescent Hydraulic Tablet Press is designed for fluorescent sample preparation.It is equipped with a installed xrf die set.

Inquire Now Next Product

Products Description

Auto Fluorescent Hydraulic Press Features:

High Precision: Wide pressure range (0-60 tons,three model for option) with accuracy up to 0.01 tons.
Smart Control: 18-segment programming, curve display, and U disk data export (Excel).
User-Friendly: 7" IPS touchscreen
Easy Operation: Automatic mold release with cantilever structure.
Safe & Durable: Overload protection, automatic pressure relief

Model No.	PP-30X	PP-40X	PP-60X
Pressing range	0~30T	0~40T	0~60T
Pressure Control	Max 18 steps Programmable control pressing-holding-relief
Pressing spee	Speed can adjust
Display	7“ LCD touch panel
Die set	Φ40/32mm	Φ40/32mm	Φ40/32mm
Die material	Boric acid, Steel, Plastic, Aluminum ring with 440c S.S mold
Security measures	Overload protection, automatic pressure relief
Dimension	250390460mm	280460550mm	300520580mm
Power Supply	AC220V/50Hz,500W	AC220V/50Hz,500W	AC220V/50Hz,500W
