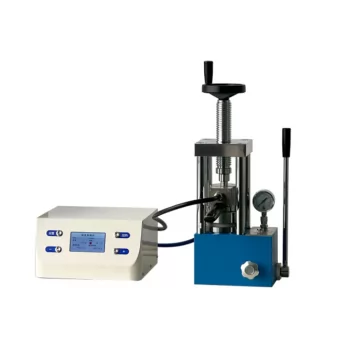

PCH-600A is a 15T manually heating press.It has 300 degree and 500 degree heating temperature for option. The PCH-600A's heating accuracy is 0.1 degree.Heating die set max diameter is 20mm.
Products Description
| Model No. | PCH-600A |
| Pressing range | 0~15T(0-30MPa) |
| Piston diameter | Chromium plated oil tank Φ80mm |
| Max heating temperature | RT~300℃ or RT~500℃ for option |
| Temperature accuracy | 0.1℃ |
| Cooling method | Water cooling |
| Die inner diameter | <20mm |
| Dimension | Press: 245*175*415mm; Total:800*470*415mm
|
| Power supply | AC220V/50Hz 300W |
