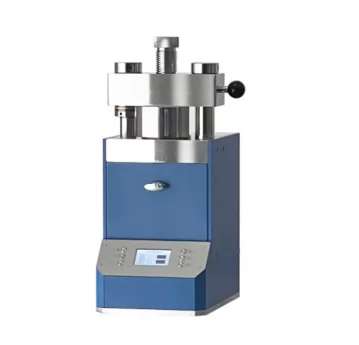

All-in-one 20T-60T Auto Heated Isostatic Press upto 200 degree

All-in-one structure auto heated isostatic press is PID control Heatable press with 300MPa vessel.Max heating temperature upto 200 degree.

Inquire Now Next Product

Products Description

Model No.	PP-20R	PP-40R	PP-40R
Pressing range	0~20T	0~40T	0~60T
Piston diameter	Φ130mm	Φ150mm	Φ200mm
Pressure Control	Programmable control pressing-holding-relief
Max heating temperature	RT~200℃
Isostatic pressure	300MPa
Vessel Size	Φ30*150mm	Φ40*150mm	Φ50*150mm
Dimension	280460660	300500680mm	330580720mm
Power Supply	AC220V/50Hz,1800W	AC220V/50Hz,1800W	AC220V/50Hz,3000W
