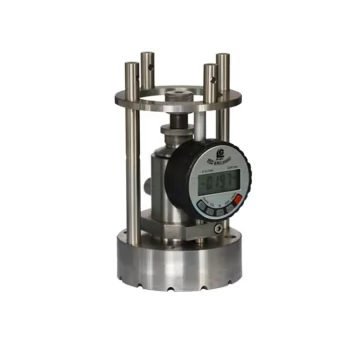

GPC-50A Precision Polishing Fixture, abbreviated as Grinding and Polishing Controller, is mainly used to control the flatness and parallelism of the surface of the ground sample, so that the ground sample has high dimensional accuracy and excellent surface quality.
Products Description
| Model No. | GPC-50A |
| Sample tray diameter | Φ52mm |
| Axial travel of sample tray | 10mm (when the dividing nut moves one grid, the axial travel of sample tray is 0.025mm) |
| Digital display accuracy | 0.001mm |
| Empty pressure of sample tray | 500g |
| Bearing sample size | diameter ≤ 50mm, thickness ≤ 8mm |
| Dimension | Φ89*154mm |
