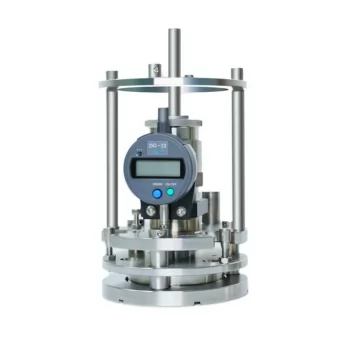

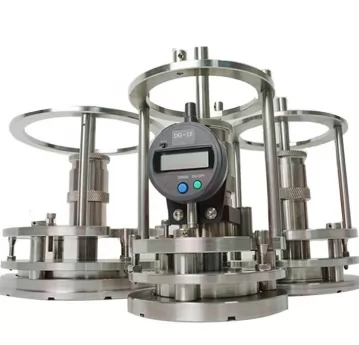

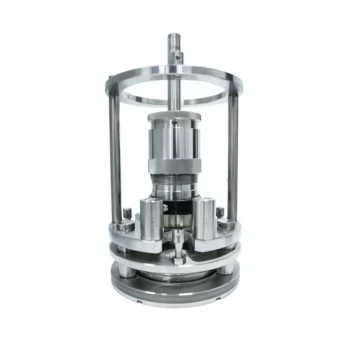

The Precision Lapping and polishing Jigs is designed for researchers and technicians requiring the highest levels of control and repeatability, these jigs provide a robust and versatile platform for preparing diverse specimens. It has 3" 4" 6" &8" sample size for option.
Products Description
| Description | CHY-LP3 | CHY-LP4 | CHY-LP6 | CHY-LP8 |
| Chuck face Diameter | 83mm | 112mm | 162mm | 212mm |
| Max sample size | 3" | 4" | 6" | 8" |
| Jig Pressure | 200-3500g ,adjustable | |||
| Measurement accuracy | 1um | |||
| TTV after sample process | +/-2um | +/-3um | +/-4um | +/-5um |
