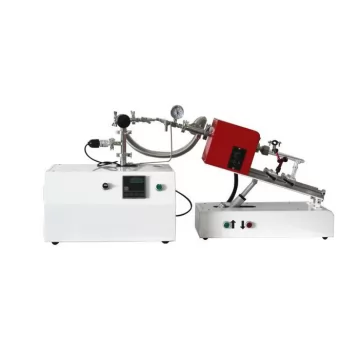

CHY-QSW01 Laboratory Single Position Quartz Tube Sealing Machine

CHY-QSW01 Laboratory Single Position Quartz Tube Sealing Machine

The vacuum sealing machine/system is mainly used to achieve oxygen free and anhydrous vacuum sealing preservation and high-temperature solid-phase synthesis of samples. The entire system consists of a vacuum sealing machine, a hydrogen oxygen machine, a molecular pump system, a quartz tube, connecting joints, etc. Standardized customized quartz tubes and quartz columns ensure precise matching of other specially designed tube joints, thereby further improving the sealing performance of quartz tubes and achieving higher standards of vacuum sealing.

Products Description

Model No.CHY-QSW01
Position of sealed pipes1 PC
Rotation speed0-15rpm
Tube DiameterΦ 20mm, or as request
Wall thickness:1.5-2mm
Quartz tube length200mm, or as request
Inflatable interface sizeThe standard connector is 6mm
Machine leakage rate2 * 10-10Pa. m ³/s
Working vacuum10-3pa (molecular pump configuration);10-1pa (mechanical pump configuration)
Voltage220V/50Hz
