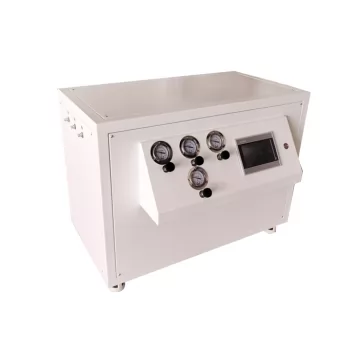

CHY-3Z Laboratory 3 Way Gas Mixer with Touch Panel

CHY-3Z gas mixing station is designed for the control of various types of gasses flowing through vacuum-sealed tube furnaces called for CVD system. It is installed in a heavy-duty mobile cart where the tube furnace can be placed on the top. The new design adopt 7" touch panel which makes gas flow speed can be settled by programmable.

Inquire Now Next Product

Products Description

Model No.	CHY-3Z
Flow Controller	7" touch panel programmable control
Flowmeter Core	304 stainless steel
Measure Accuracy	Accuracy: ±1.5%FS Linearity: ±1%FS Repeatability: ±0.2%FS
Pressure Range	-0.1~0.15MPa
A way gas range	0~50SCCM
B way gas range	0~200SCCM
C way gas range	0~500SCCM, or as customized
Alarm	Flow deviation alarm
Working temperature	5~45 ºC
Power Supply	AC220V 50Hz
Dimension	1060700780mm
