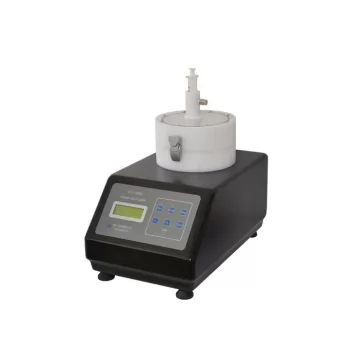

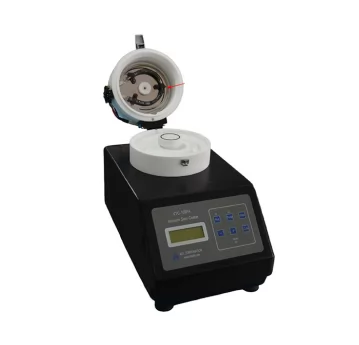

The VTC-100PA Anti Corrosion Vacuum Spin Coater is suitable for surface coating processes such as semiconductors, crystals, optical discs, and plate making. The chamber is made of polypropylene material, which can be used for the preparation of coatings for strong acid and strong alkaline coating solutions.
Products Description
| Model No. | VTC-100PA |
| Power supply | AC220/50Hz;Rated power:≤150W |
| Chamber material | polypropylene |
| Vacuum chuck | Polypropylene Φ19mm 、Φ60mm each one piece |
| Control method | Programmable :12 program can restore; each program 6 steps |
| Spin speed | 500rpm~10000rpm |
| Range of increase/decrease rate setting | 100 rpm ~2000 rpm |
| Coating time | 0~60s |
| Dimension | 450mm×340mm×280mm |
