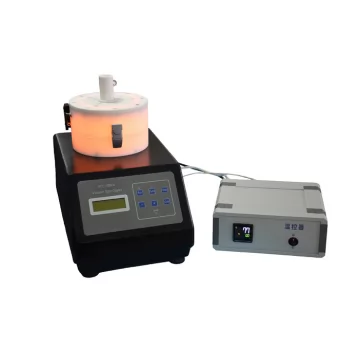

VTC-100PA-I Anti Corrosion Vacuum Spin Coater with Heating Cover

The VTC-100PA-I Anti Corrosion Vacuum Spin Coater is suitable for surface coating processes such as semiconductors, crystals, optical discs, and plate making. It equip with a heating cover max heating temperature can up to 100 degree.

Inquire Now Next Product

Products Description

Model No.	VTC-100PA-I	VTC-100PA-II
Power supply	AC220/50Hz;Rated power:≤1150W
Chamber material	polypropylene
Vacuum chuck	Polypropylene Φ19mm 、Φ60mm each one piece
Control method	Programmable :12 program can restore; each program 6 steps
Spin speed	500rpm~10000rpm
Range of increase/decrease rate setting	100 rpm ~2000 rpm
Coating time	0~60s
Heating function	carbon fiber heating tubes	carbon fiber heating tubes
Temperature range	RT~100℃	RT~200℃
Temperature accuracy	±2℃	±2℃
Dimension	450mm×340mm×280mm
