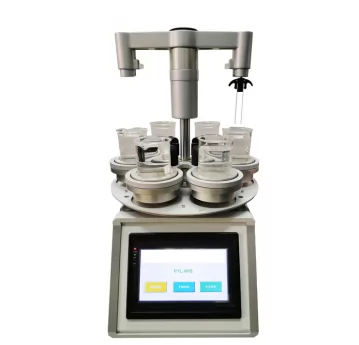

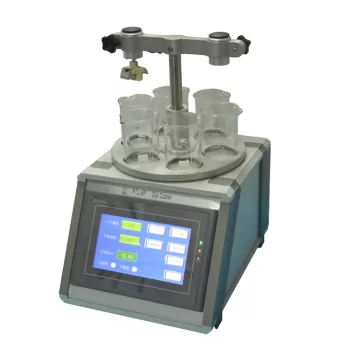

PTL-6P Compact Six Station Dipping Coater with Option Heating

The PTL-6P six station dipping coater can lift one sample at a time. The sample is controlled by a program to rotate counterclockwise. After being immersed in a feeding beaker for a certain period of time, it is pulled out for drying. The soaking time and drying time can be set through the program.If you need heating plate,can choose PTL-6PB

Inquire Now Next Product

Products Description

Model No.	PTL-6P	PTL-6PB
Power supply	AC220V/50Hz; 100W	AC220/50Hz;1200w
Stirring speed	High speed/Low speed,separately setting	1-5 rpm/s,separately setting
Heating Temperature	None	Rt~80℃
Dipping speed	Auto: 1-400 mm/min adjustable Manually:1~150mm/min adjustable
Effective dipping length	60mm
Distance setting	1~80mm
Dipping/drying time setting	1~999s
Dipping times	1~45times
Sample size	75mm×25mm×2mm
Machine dimension	260mm×340mm×420mm
