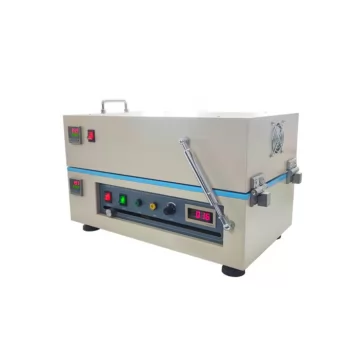

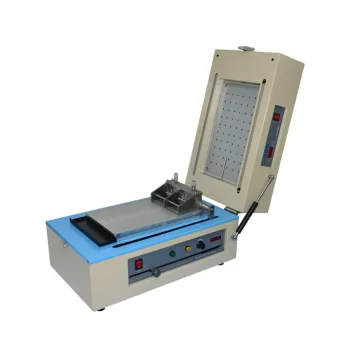

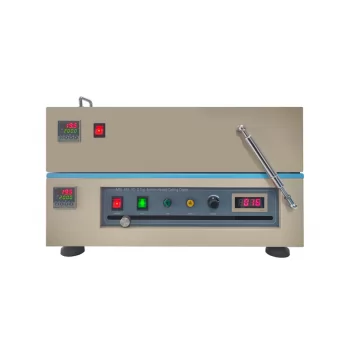

The MSK-AFA-IIID heated tape coating machine is a small automatic bottom heating tape coating and scraping machine designed and developed by our company. It is mainly used for laboratory coating of liquid or colloidal thin films. The equipment uses a continuously variable speed motor to precisely control the coating speed, achieving the goal of uniformly advancing the scraper for coating. The scraper is made of all stainless steel material, with a constant weight, which can improve the consistency and uniformity of the coating.
Products Description
| Model No. | MSK-AFA-I | MSK-AFA-III | MSK-AFA-IIID |
| Film speed | 10~100mm/s,adjustable | ||
| Coating Plate Size | L360*W200mm | ||
| Vacuum Size | L300*W150mm | ||
| Coating Length | 0~300mm, adjustable | ||
| Film Applicater | W150mm, thickness:0~3500μm | ||
| Heating Temperature | None | Bottom heating max 120℃ | Top&Bottom heating max 200℃ |
| Temperature accuracy | None | ±2℃ | ±2℃ |
| Dimension | 610mm×390mm×240mm | 610mm×390mm×340mm | 610mm×390mm×340mm |
