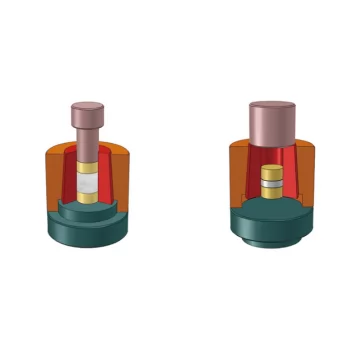

The round split die set is suitable for molding ultra-fine powders or samples prone to delamination and cracking. The mold utilizes a quick-release outer sleeve to address the issue of sample deformation and failure to shape caused by expansion during demolding.
| Model No. | PMK-YD | PMY-YE |
| Die material | 440C | Alloy steel:Cr12MoV |
| Hardness | HRC60-HRC62 | HRC60-HRC62 |
| Sample Size | Φ26,27,28,29,30,31,32,33,34,35,36,37,38,39,40mm | Φ45,50,60,70,80mm |
| Cavity Depth | 50mm | 60mm |
| Dimension | Φ100*130mm | Φ120*180mm-160*180mm |
| Gross weight | 6.5kg | 8-20kg |
