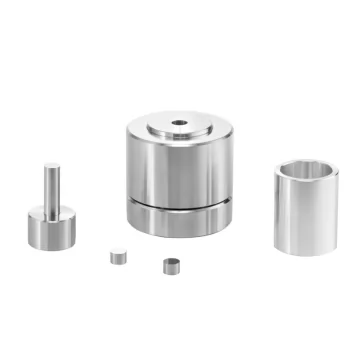

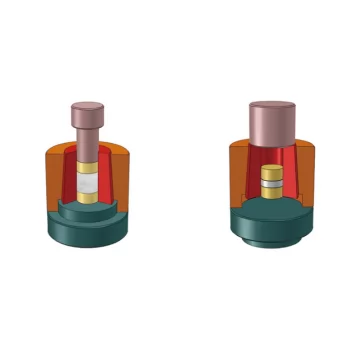

The round split die set is suitable for molding ultra-fine powders or samples prone to delamination and cracking. The mold utilizes a quick-release outer sleeve to address the issue of sample deformation and failure to shape caused by expansion during demolding.
| Model No. | PMK-YA | PMY-YB | PMY-YC |
| Die material | High speed steel:ASSAB+17 | 440C | Alloy steel:Cr12MoV |
| Hardness | HRC68-HRC70 | HRC60-HRC62 | HRC60-HRC62 |
| Sample Size | Φ3,4,5,6,7,8,9,10mm | Φ7,8,9,10,11,12,13,14mm | Φ15,16,17,18,19,20,21,22,23,24,25mm |
| Cavity Depth | 30mm | 40mm | 40mm |
| Dimension | Φ53*93mm | Φ68*110mm | Φ88*110mm |
| Gross weight | 1kg | 2kg | 5kg |
