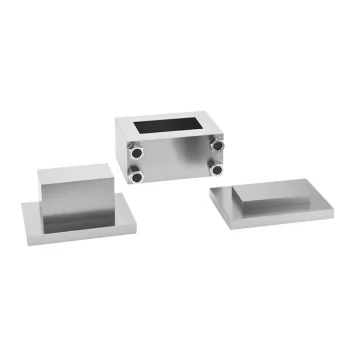

80-200mm Square Split Die Set
80-200mm Square Split Die Set

80-200mm Square Split Die Set

The square shape pellet die set is used for square shape pellet preparation. The split squere die set has 80 to 200mm size for option

Inquire Now Next Product

Products Description

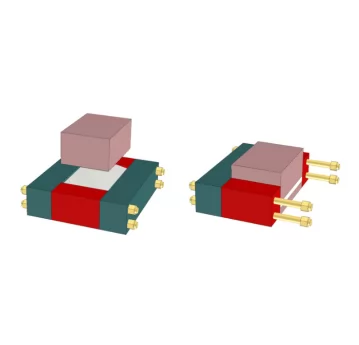

Rectangular Split Die

  • Application: Suitable for creating large rectangular samples.

  • Key Features:

    • Lightweight: Weighs less than standard solid rectangular dies.

    • Compact: Its smaller size allows it to fit into smaller laboratory presses where a large solid die might not fit.


Model No.PMF-PAPMF-PB
Die materialAlloy steel:Cr12MoVAlloy steel:Cr12MoV
HardnessHRC60-HRC62HRC60-HRC62
Sample Size81-150mm as request150-200mm as request
Cavity Depth60mm60mm
Dimension160*160mm200*160mm;
Gross weight20kg28kg
