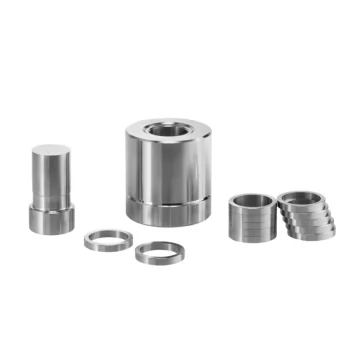

PMG 32-40mm Steel Ring Die Set for Fluorescence

PMG XRF Steel Ring die set Features:

Pellet Outer diameter: 40 mm

Sample Diameter: 32 mm

Pellet Height: 5–8 mm

Custom sizes are available upon request.

Inquire Now Next Product

Products Description

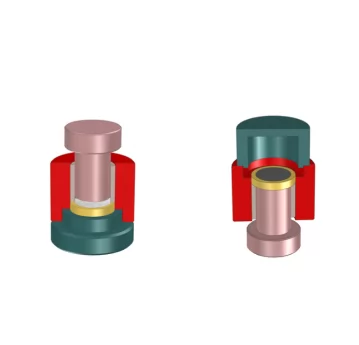

Steel Ring XRF mold is used to encase a sample with boric acid powder, which is then pressed into a pellet. It is primarily used for preparing samples for X-ray fluorescence spectrometry.

Model No.	PMG
Die material	440C
Hardness	HRC60-HRC62
Sample Size	Φ32mm, Φ40mm
Cavity Depth	45mm
Dimension	Φ73*133mm
Gross weight	3.5kg
