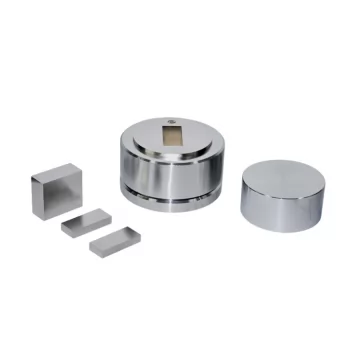

The split Rectangle die set is suitable for molding ultra-fine powders or samples prone to delamination and cracking. The mold utilizes a quick-release outer sleeve to address the issue of sample deformation and failure to shape caused by expansion during demolding.
| Model No. | PMK-FD | PMY-FE |
| Die material | 440C | Alloy speed:Cr12MoV |
| Hardness | HRC60-HRC62 | HRC60-HRC62 |
| Sample Size | 41*41-60*60mm | 60*60-80*80mm as request |
| Cavity Depth | 50mm | 60mm |
| Dimension | Φ110*130mm | Φ180*180mm Φ200*180mm |
| Gross weight | 8kg | 40kg;50kg |
