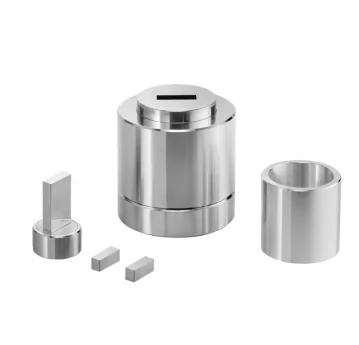

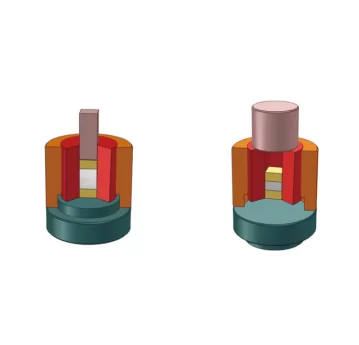

The square split die set is suitable for molding ultra-fine powders or samples prone to delamination and cracking. The mold utilizes a quick-release outer sleeve to address the issue of sample deformation and failure to shape caused by expansion during demolding.
| Model No. | PMK-FA | PMY-FB | PMY-FC |
| Die material | 440C | 440C | 440C |
| Hardness | HRC60-HRC62 | HRC60-HRC62 | HRC60-HRC62 |
| Sample Size | 3*3-10*10mm | 11*11-20*20mm as request | 21*21-40*40mm as request |
| Cavity Depth | 30mm | 40mm | 40mm |
| Dimension | Φ68*110mm | Φ78*110mm | Φ88*110mm |
| Gross weight | 2kg | 3kg | 5kg |
