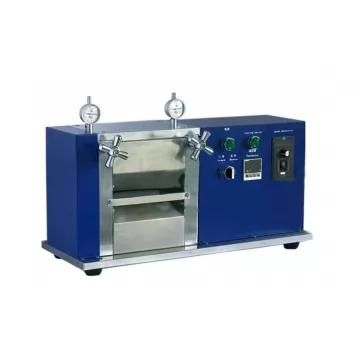

The CHY-JS100 vertical roller machine is mainly suitable for laboratory battery materials, small amounts of precious metal materials such as gold and silver, and non-ferrous materials such as copper and aluminum Electric rolling at a certain temperature, with adjustable rolling thickness and simple operation.
Products Description
| Model No. | CHY-JS100 |
| Roller diameter | Φ100mm |
| Roller hardness | HRC62 |
| Roller smoothness | >Ra0.4 |
| Roller cylindricity | ≤± 2um |
| Rolling thickness | adjustable gap between 0-2mm |
| Heating width | 100mm |
| Rolling temperature | Rt~130 degree adjustable |
| Temperature control accuracy | ± 0.5 ℃ |
| Feed speed | 0-40mm/s, adjustable |
| Voltage | AC220V/50Hz; 800W |
| Dimension | L500mm * W220mm * H320mm |
