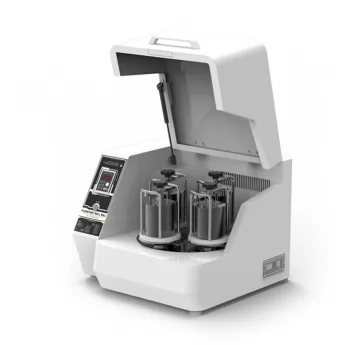

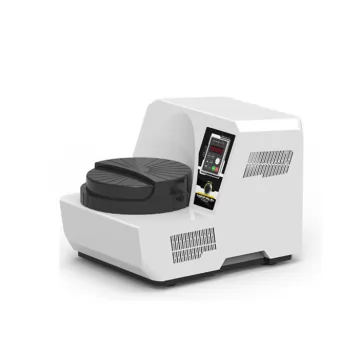

CHY-FP200 Micro High-energy Planetary Ball Mill with 200ml Capacity

The CHY-FP200 Features:

Compact size: 360*480*340 mm
Max grinding capacity:2pcs*200ml
Various ball mill jars for option:Tungsten carbide | Zirconia | Agate | Stainless steel | Nylon

Inquire Now Next Product

Products Description

Model No.	CHY-FP200
Feed Sample Size	<2mm
Max Capacity of Grinding Jar	100ml*2pcs; 50/80ml for option
Max Feeding Capacity	200ml
Output sample size range	0.1-20 um
Mill Jar Rotational speed	2200 r/min
Planetary disk orbital speed	1100r/min
Mode of motion	planetary motion
Grinding jar material	Tungsten carbide \| Zirconia \| Agate \| Stainless steel \| MC nylon optional
Power Supply	100-120V/200-240V AC ,50-60Hz,750W
Dimension	360480340 mm
