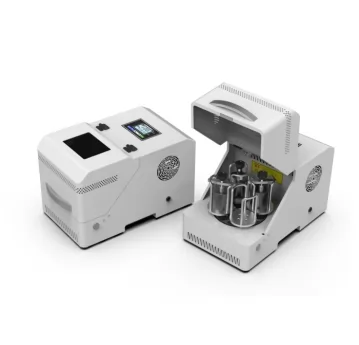

CHY-FP400 Desktop Micro Planetary Ball Mill with max 4*100ml Jar

The CHY-FP400 is a small desktop planetary ball mill, capable of assembling up to 4pcs100ml ball milling tanks. The product is used for grinding or mixing small and brittle samples in the laboratory, and has the characteristics of good processing effect, strong practicality, high safety, and simple use.

Inquire Now Next Product

Products Description

Model No.	CHY-FP400
Feed Sample Size	<2mm
Capacity of Grinding Jar	100ml*4pcs; 50ml vacuum jar for option
Max Feeding Capacity	2/3 capacity of the grinding jar
Output sample size range	0.1-20 um
Max speed	1000 r/min
Mode of motion	X-axis planetary motion
Grinding jar material	Tungsten carbide \| Zirconia \| Agate \| Stainless steel \| MC nylon optional
Grinding method	Dry grinding and wet grinding
Machine function	Continuous and alternating forward and reverse operation, timed speed regulation, power-off memory \| Emergency stop, overload and dangerous operation protection, temperature monitoring \| High temperature protection
Power Supply	100-120V/200-240V AC ,50-60Hz,250W
Dimension	300370300mm
