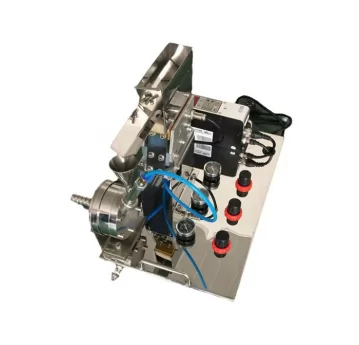

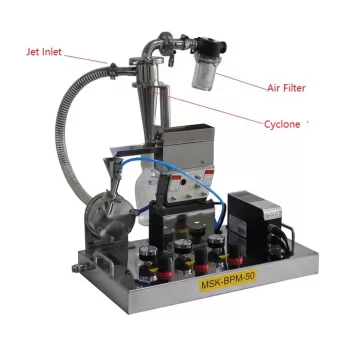

CHY-BPM-50 Compact Air Jet Mill Speed 50-500 g/hr

CHY-BPM-50 is a lab-scale jet mill for materials with various hardness and properties. It grinds materials such as ceramic, magnet, ferrite, and metallic alloy into micron-scale powder (2-5 microns) with an output rate of 50 - 500g/hr.

Inquire Now Next Product

Products Description

Working Power	Recommended 0.6 - 1.0 MPa Pressure Recommended gas consumption rate: 0.25 - 0.5 m³/ minute An air compressor is required but is NOT included.
Particle	Input: 100 - 200 mesh [150-750 um] Output: 2 - 15 micron, 50-500g/hr
Mill Liner	High purity fully sintered alumina
Powder Feeder	Automatic powder feeder controlled by vibration frequency Frequency: 40-400Hz adjustable
Dimensions	520x350x 340mm
