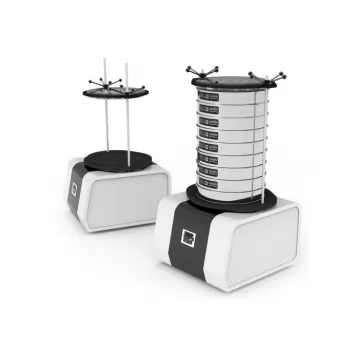

CHY-FSD400 Heavy-duty Dry three-dimensional Vibrating Screen

The CHY -FSD400 is designed for common screening tasks in laboratories or small industrial, suitable for screening dry samples max 25kg. The product follows a design philosophy of precision, efficiency, and quietness. It is equipped with a time control panel that enables continuous and intermittent screening with constant amplitude, as well as timing functions. It also includes password lock screen protection and one-button reset, making it easy to use, simple to operate, quiet and comfortable, safe and reliable.

Inquire Now Next Product

Products Description

Model No.	CHY-FSD400
Processing principle	High-frequency three-dimensional parabolic motion
Sample application	Powdery \| Granular \| Small lump \| Loose \| Suspended matter, et
Processing type	Particle size determination, separation, and classification
Maximum loading capacity	25kg
Screen layer	1-8 layers
Amplitude	0.8-4mm
Vibration frequency	3000 times/minute
Screening particle size range	75 um – 125 mm
Maximum Screen diameter	400mm
Maximum screen tower height	960mm
Main functions	Digital control \| Timing \| Continuous screening \| Intermittent screening
Power supply	100-120V/200-240V AC ,50-60Hz, 1500W
Machine Dimension	6006601260mm
