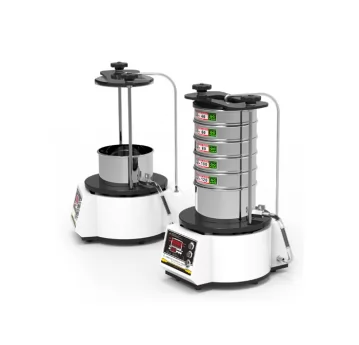

CHY-FSW200 Laboratory Wet Three-dimensional Vibrating Screen

CHY-FSW200 Laboratory Wet Three-dimensional Vibrating Screen

The CHY -FWS200 is designed for common screening tasks in laboratories, suitable for screening dry wet or liquid samples ranging from 20g to 3kg. The product follows a design philosophy of precision, efficiency, and quietness. It is equipped with a time control panel that enables continuous and intermittent screening with constant amplitude, as well as timing functions. It also includes password lock screen protection and one-button reset, making it easy to use, simple to operate, quiet and comfortable, safe and reliable.

Products Description

Model No.CHY-FSW200
Processing principleHigh-frequency three-dimensional parabolic motion
Sample application

Powdery | Granular | Small lump | Loose | Suspended matter, et

Processing typeParticle size determination, separation, and classification
Screen methodDry/Wet
Maximum loading capacity3kg
Screen layer1-8 layers
Amplitude0.2-3 mm
Vibration frequency3000 times/minute
Screening particle size range20 um – 125 mm
Maximum Screen diameter200mm
Maximum screen tower height510mm
Main functionsDigital control | Timing | Continuous screening | Intermittent screening
Power supply100-120V/200-240V AC ,50-60Hz, 200W
Machine Dimension300*405*730mm
