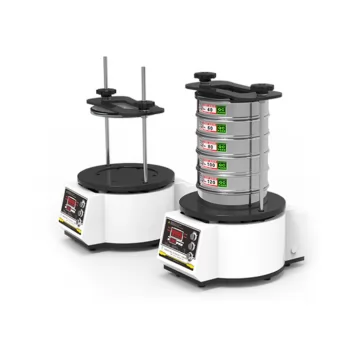

CHY-FSD200 Laboratory Dry Three-dimensional Vibrating Screen

The CHY -FSD200 is designed for common screening tasks in laboratories, suitable for screening dry samples ranging from 20g to 3kg. The product follows a design philosophy of precision, efficiency, and quietness. It is equipped with a time control panel that enables continuous and intermittent screening with constant amplitude, as well as timing functions. It also includes password lock screen protection and one-button reset, making it easy to use, simple to operate, quiet and comfortable, safe and reliable.

Inquire Now Next Product

Products Description

Model No.	CHY-FSD200
Processing principle	High-frequency three-dimensional parabolic motion
Sample application	Powdery \| Granular \| Small lump \| Loose \| Suspended matter, et
Processing type	Particle size determination, separation, and classification
Maximum loading capacity	3kg
Screen layer	1-8 layers
Amplitude	0.2-3 mm
Vibration frequency	3000 times/minute
Screening particle size range	20 um – 125 mm
Maximum Screen diameter	200mm
Maximum screen tower height	510mm
Main functions	Digital control \| Timing \| Continuous screening \| Intermittent screening
Power supply	100-120V/200-240V AC ,50-60Hz, 200W
Machine Dimension	300405685mm
