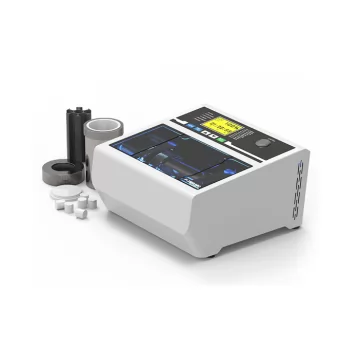

CHY-F-XRD180 Laboratory Micro Horizontal Tank Mill with 180ml Zirconia Jar

The CHY-F-XRD180 is a desktop, miniature, multi-functional horizontal grinding instrument specifically developed for sample preparation in X-ray diffraction (XRD) analysis.It can be used in applications such as geology, chemistry, mining, new materials, and educational scientific research. 180ml zirconia jar or tungsten carbide jar for option.

Inquire Now Next Product

Products Description

Model No.	CHY-F-XRD180
Feed Sample Size	<0.5mm
Capacity of Grinding Jar	180ml*1pc; 100ml &50ml for option
Max Feeding Capacity	2/3 capacity of the grinding jar
Output sample size range	<1um
Max speed	1800 r/min
Gringding time	3-30min
Grinding jar material	Tungsten carbide \| Zirconia for option
Grinding method	Dry grinding and wet grinding
Machine function	Continuous grinding \| Intermittent grinding \| Alternative grinding \| Timing \| Speed regulation \| Power-off memory
Power Supply	100-120V/200-240V AC ,50-60Hz,60W
Dimension	260250140mm
